X-energy’s proposed Xe-100 reactor will use helium gas as a coolant instead, allowing it to operate at much lower pressures and higher temperatures. The helium will heat water and create super-heated steam, which industry can use either directly or to generate 80 megawatts (MW) of electricity via a turbine, or a combination of the two. That’s about one-tenth of the capacity of most reactors operating today.
In common with other small modular reactors (SMRs), the Xe-100 will use a modern uranium-based fuel called TRISO (short for tristructural-isotropic) that is extremely resistant to corrosion and melting. Compact TRISO “pebbles” will be added continuously to the top of the reactor, then flow slowly to the bottom, where they will either be recycled or removed as waste. The company says the reactor will be intrinsically safe in the event of a loss of power—if temperatures inside rise, the nuclear reaction naturally slows and stops.
Key indicators
- Industry: Nuclear fission
- Founded: 2009
- Headquarters: Rockville, Maryland, US
- Notable fact: The first helium-cooled reactor was proposed for the World War II Manhattan Project but was passed over in favor of a simpler and cheaper water-cooled design.
Potential for impact
Industrial heating currently accounts for 18 percent of annual global greenhouse-gas emissions, with about half of that coming from high-temperature processes that are difficult to electrify. Co-locating small nuclear reactors at large manufacturing facilities could shrink some of the biggest carbon footprints in the world.
The Xe-100 reactor could also be used by the fossil fuel industry, which today uses vast quantities of natural gas to generate the heat needed to recover oil from tar sands, and during oil refining.
The flexibility of the Xe-100 means that it can be used for traditional electricity generation. By scaling down in size and power from today’s gigawatt-scale fission plants, small reactors like the Xe-100 can serve more markets—even down to individual data centers. AI and data centers now represent the single largest component of new demand for electricity in the US, and their consumption is expected to double again by 2030. X-energy says that up to 12 of its reactors could be clustered together to provide 24/7 power on site, at a lower cost than a traditional nuclear power station and without the hassle of adding transmission infrastructure.
Caveats
The technology behind helium-cooled fission may be well understood, but the only commercial-scale power generation of this type today is in China, where two reactors have struggled to operate on a continuous basis. X-energy says that its vertically integrated fuel supply should ensure reliable operation, with reactors having a lifetime of 60 years.
The economic case for SMRs is also largely unproven. Nuclear costs and timelines have a habit of ballooning, and the US Energy Information Administration calculates that electricity from SMRs will cost more than six times that from solar farms. While the current environment in the US for regulation and government funding favors nuclear, that could change over X-energy’s long development time frame.
TRISO reactors appear excellent for safety and nonproliferation (the tough spheres would be difficult to turn into weapons) but are less impressive when it comes to waste. The Xe-100 might produce 10 times the volume of spent nuclear fuel per unit of energy as existing reactors, although its lower-level waste will need less sophisticated storage.
Next steps

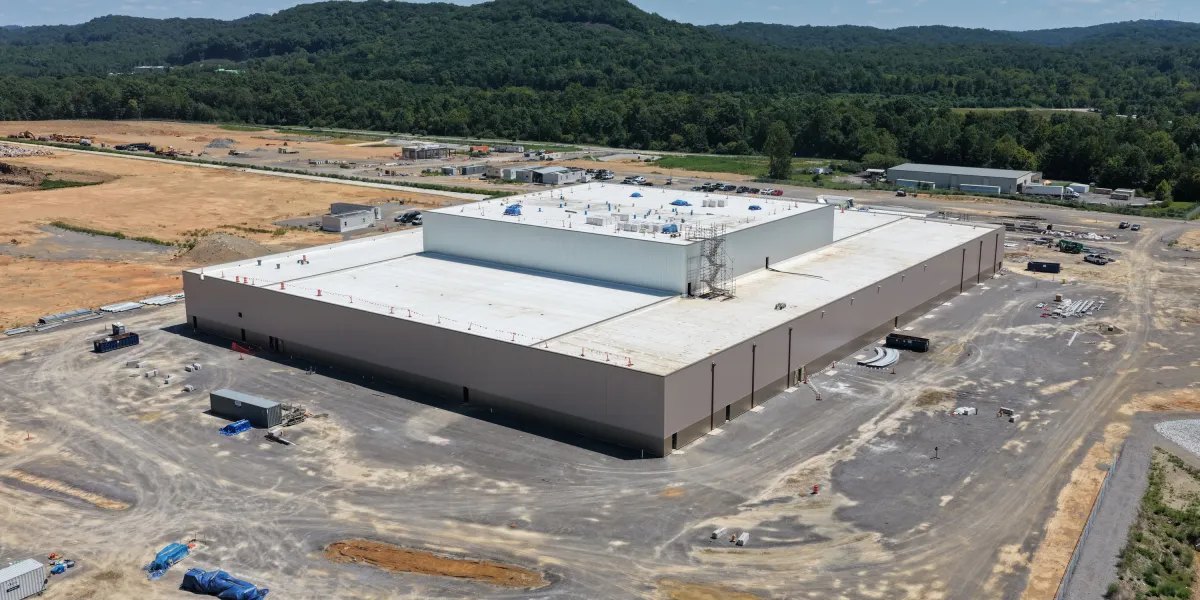

The US Nuclear Regulatory Commission has issued X-energy’s subsidiary with a fuel fabrication license for TRISO-X pebbles, with its first factory due for completion in 2028. An Xe-100 to supply heat and power for a large chemical facility in Texas operated by Dow has also cleared its first regulatory hurdle, and could be operational by the early 2030s.
In tandem, X-energy is working toward a 320 MW cluster of four Xe-100 reactors in Richland, Washington, in collaboration with Amazon, and a larger 6 GW fleet in the UK’s northeast. Both projects target electricity generation in the 2030s.
